Application
Star insert with cone adapter (CA), rotationally adjustable and 4 x 90° connection options for styli without thread
- Mounting and clamping option for 4 styli without thread
- Special cone holder for maximum torsion resistance
- Can be reused several times
- Quick and safe assembly
- Optimum accessibility due to slim design
- Can be used in ZEISS basic rotary mounts
Details
- Application
- Connect
- Product Type
- Stylus Holder
- Connection Type
- Cone Adapter
- Connection Type Out
- M5
- Length (L)
- 10,0 mm
- Measurement Length (ML)
- 7,0 mm
- Material
- Titanium
- Ø Shaft (DS)
- 1,5 mm
- Ø Body (DG)
- 11,0 mm
- Angle 1 (W1)
- 90,0 °
- Weight
- 4,1 g
Product note

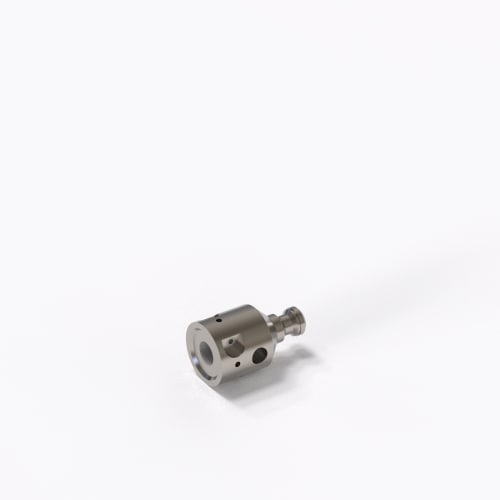

Star element with cone adapter, 4 x DS 1.5 (90°), titanium, L: 10, DG: 11, weight: 4.1 g
