Multi sided cubes
Multiple mounts are milled for styli holders that are available in different designs. Almost any shape can be realized, from beams to complex angle elements. Due to the high complexity of the requirements, the standard portfolio in the M5 range is limited to the most common shapes. Greater flexibility can be achieved by using M5 pro elements.

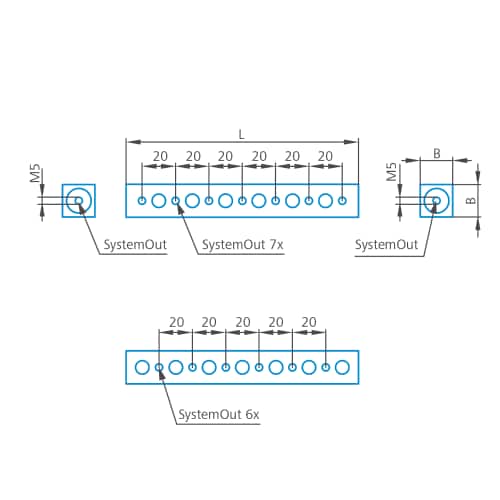

626105-6190-038
- Measuring Sensor
- VAST/MT
- Product Type
- Multiple Position
- Length (L)
- 140,0 mm
- Material
- Titanium
- Connection Type
- M5
- Application
- Connect
- Width (B)
- 20,0 mm
- Weight
- 166,0 g
- Connection Type Out
- M5
518,00 €excl. VAT
Expected soon
626105-6110-000
- Product Type
- Cube
- Angle 1 (W1)
- 45,0 °
- Material
- Titanium
- Connection Type
- M5
- Application
- Connect
- Ø Body (DG)
- 29,0 mm
- Width (B)
- 15,0 mm
- Weight
- 39,6 g
- Connection Type Out
- M5
207,00 €excl. VAT
Longer delivery time
626105-6110-033
- Product Type
- Cube
- Angle 1 (W1)
- 45,0 °
- Material
- Titanium
- Connection Type
- M5
- Application
- Connect
- Ø Body (DG)
- 41,0 mm
- Width (B)
- 15,0 mm
- Weight
- 55,0 g
- Connection Type Out
- M5
419,00 €excl. VAT
Longer delivery time
626105-6110-031
- Product Type
- Cube
- Angle 1 (W1)
- 30,0 °
- Material
- Titanium
- Connection Type
- M5
- Application
- Connect
- Ø Body (DG)
- 34,0 mm
- Width (B)
- 15,0 mm
- Weight
- 47,0 g
- Connection Type Out
- M5
321,00 €excl. VAT
Available
626105-6110-030
- Product Type
- Cube
- Angle 1 (W1)
- 30,0 °
- Material
- Titanium
- Connection Type
- M5
- Application
- Connect
- Ø Body (DG)
- 41,0 mm
- Width (B)
- 15,0 mm
- Weight
- 66,0 g
- Connection Type Out
- M5
364,00 €excl. VAT
Longer delivery time
626105-6010-000
- Product Type
- Cube
- Angle 1 (W1)
- 45,0 °
- Material
- Aluminum
- Connection Type
- M5
- Application
- Connect
- Ø Body (DG)
- 29,0 mm
- Width (B)
- 15,0 mm
- Weight
- 23,2 g
- Connection Type Out
- M5
176,00 €excl. VAT
Available
626105-6110-005
- Product Type
- Multiple Position
- Angle 1 (W1)
- 72,0 °
- Material
- Titanium
- Connection Type
- M5
- Application
- Connect
- Ø Body (DG)
- 32,0 mm
- Width (B)
- 13,0 mm
- Weight
- 39,1 g
- Connection Type Out
- M5
282,00 €excl. VAT
Expected soon
