Screws

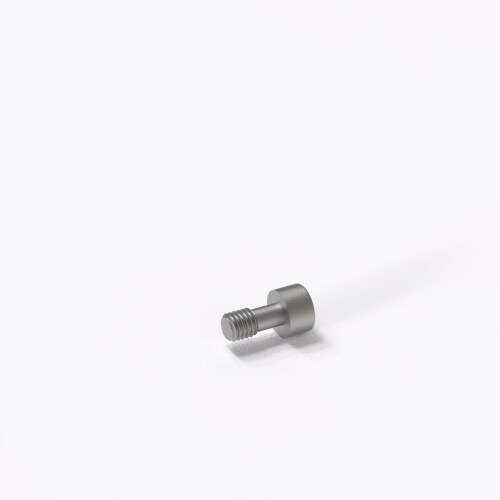

Screws for fixing and adjusting a wide variety of connecting elements and disk styli. Undercut screws can be screwed through cubes into an extension. This makes it possible to adjust the angle of the subsequent component. The required length of the screw depends on the thickness of the inserted cube.
626109-0017-000
- Product Type
- Screw
- Length (L)
- 27,0 mm
- Material
- Steel
- Connection Type
- M5
- Measurement Length (ML)
- 22,0 mm
- Application
- Connect
- Weight
- 4,0 g
10,40 €excl. VAT
Available
626105-6271-001
- Product Type
- Position
- Material
- Steel
- Shaft Material
- Steel
- Connection Type
- M5
- Ø Shaft (DS)
- 8,0 mm
- Application
- Connect
- Weight
- 6,0 g
40,90 €excl. VAT
Available
626119-0001-018
- Product Type
- Screw
- Connection Type
- M5 Pro
- Application
- Connect
39,00 €excl. VAT
Available
626105-6271-002
- Product Type
- Position
- Material
- Steel
- Shaft Material
- Steel
- Connection Type
- M5
- Ø Shaft (DS)
- 16,0 mm
- Application
- Connect
- Weight
- 10,0 g
86,30 €excl. VAT
Available
626109-0023-000
- Product Type
- Screw
- Length (L)
- 20,0 mm
- Material
- Steel
- Connection Type
- M5
- Measurement Length (ML)
- 15,0 mm
- Application
- Connect
- Ø Body (DG)
- 11,0 mm
- Width (B)
- 15,0 mm
- Weight
- 11,4 g
- Connection Type Out
- M5
22,00 €excl. VAT
Expected soon
600341-0210-000
- Product Type
- Screw
- Length (L)
- 35,0 mm
- Material
- Steel
- Connection Type
- M5
- Measurement Length (ML)
- 26,0 mm
- Application
- Connect
- Weight
- 9,0 g
- Connection Type Out
- M5
17,30 €excl. VAT
Available
626119-0001-019
- Product Type
- Screw
- Connection Type
- M5
- Application
- Connect
10,40 €excl. VAT
Available
600341-0211-000
- Product Type
- Screw
- Length (L)
- 30,0 mm
- Material
- Steel
- Connection Type
- M5
- Measurement Length (ML)
- 21,0 mm
- Application
- Connect
- Weight
- 9,0 g
- Connection Type Out
- M5
15,00 €excl. VAT
Available
600341-0212-000
- Product Type
- Screw
- Length (L)
- 17,5 mm
- Material
- Steel
- Connection Type
- M5
- Measurement Length (ML)
- 10,0 mm
- Application
- Connect
- Weight
- 7,0 g
- Connection Type Out
- M5
12,70 €excl. VAT
Available
626109-0016-000
- Product Type
- Screw
- Length (L)
- 25,0 mm
- Material
- Steel
- Connection Type
- M5
- Measurement Length (ML)
- 20,0 mm
- Application
- Connect
- Weight
- 3,0 g
10,40 €excl. VAT
Available
626109-0024-000
- Product Type
- Screw
- Length (L)
- 25,0 mm
- Material
- Steel
- Connection Type
- M5
- Measurement Length (ML)
- 20,0 mm
- Application
- Connect
- Ø Body (DG)
- 11,0 mm
- Width (B)
- 15,0 mm
- Weight
- 11,9 g
- Connection Type Out
- M5
22,00 €excl. VAT
Made to Order
16,80 €excl. VAT
Available
626109-0015-000
- Product Type
- Screw
- Length (L)
- 20,0 mm
- Material
- Steel
- Connection Type
- M5
- Measurement Length (ML)
- 15,0 mm
- Application
- Connect
- Weight
- 3,0 g
10,40 €excl. VAT
Available
