Application
3-fold holder in strip design 20 x 20 mm in different lengths. Several M5 screw-on options for styli or extensions
- Made from a high-quality titanium alloy
- With M5 per connection options
- Low weight combined with high rigidity
- Suitable for gear measurements
Details
- Application
- Connect
- Product Type
- Stylus Holder
- Connection Type
- M5 Pro
- Connection Type Out
- M5 Pro
- Length (L)
- 64,0 mm
- Material
- Titanium
- Width (B)
- 20,0 mm
- Weight
- 76,0 g

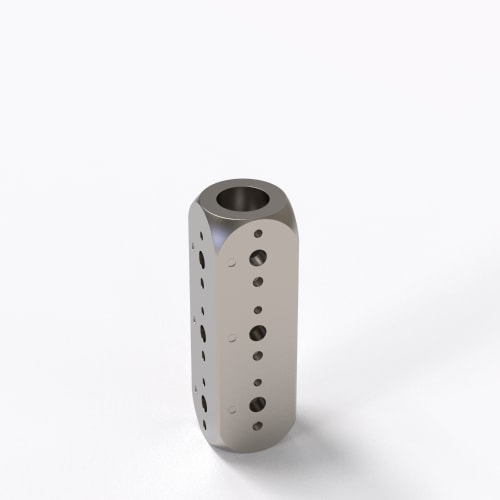

Stylus holder, M5 pro system, triple (3) levels, titanium, L: 64, B: 20, weight: 76 g
Product note
Multiple holders for styli with or without thread are used to create complex probe arrangements or star styli from standard elements. The advantage is the comparatively low cost compared to special probes and the flexibility when making changes to the measuring task.
